CIP DUCT CLEANING SYSTEM

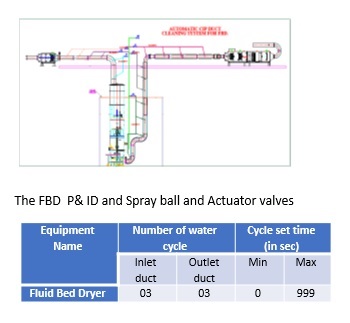

FLOW and P&ID’s

PURPOSE
The purpose of this document is to prepare summary and review of cleaning performed and the quantity of portable water used to clean the respective equipment ducts in miscellaneous qualification for establishment of duct cleaning procedure

APPLICATION

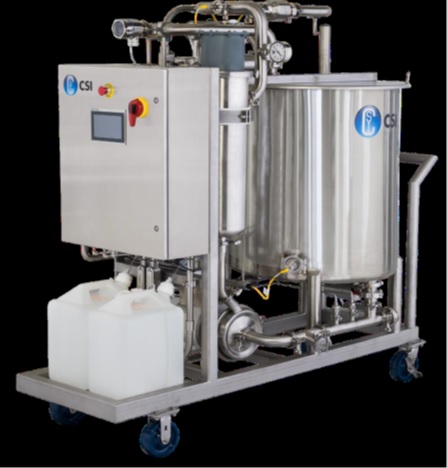

SIRI PHARMA SOLUTIONS Automatic Duct Cleaning System & Skid regulates the operation of your Clean-in-Place system. Automatic Duct Cleaning System & Skid takes the guesswork out of configuring and selecting the start, stop and flow required for a successful clean-in place cycles. If used properly, your Automatic Duct Cleaning System& Skid can be a source of savings and a vital step in ensuring product quality through rapid and effective cleaning.

TYPICAL PROCESS FLOW CHART

Water feed to the Tank

⇩

Motor generate the pressure

⇩

Pump connector connected to the Duct Header line

⇩

After Spray Ball nozzle connected to the Duct Water Header line

⇩

After reach the pressure Spray nozzle rotate the 360 Deg.

SCOPE

The scope of this protocol is to outline the procedure for establishment of inlet and outlet duct cleaning procedure for Fluid Bed Processor and Coating Machines.
